The Broadcast Analytics are divided into multiple pages. Access them using the menu on the bottom left corner of the Broadcast Analytics dashboard.

Applies To

  • Jumper
  • Analytics
  • Broadcast

Content:

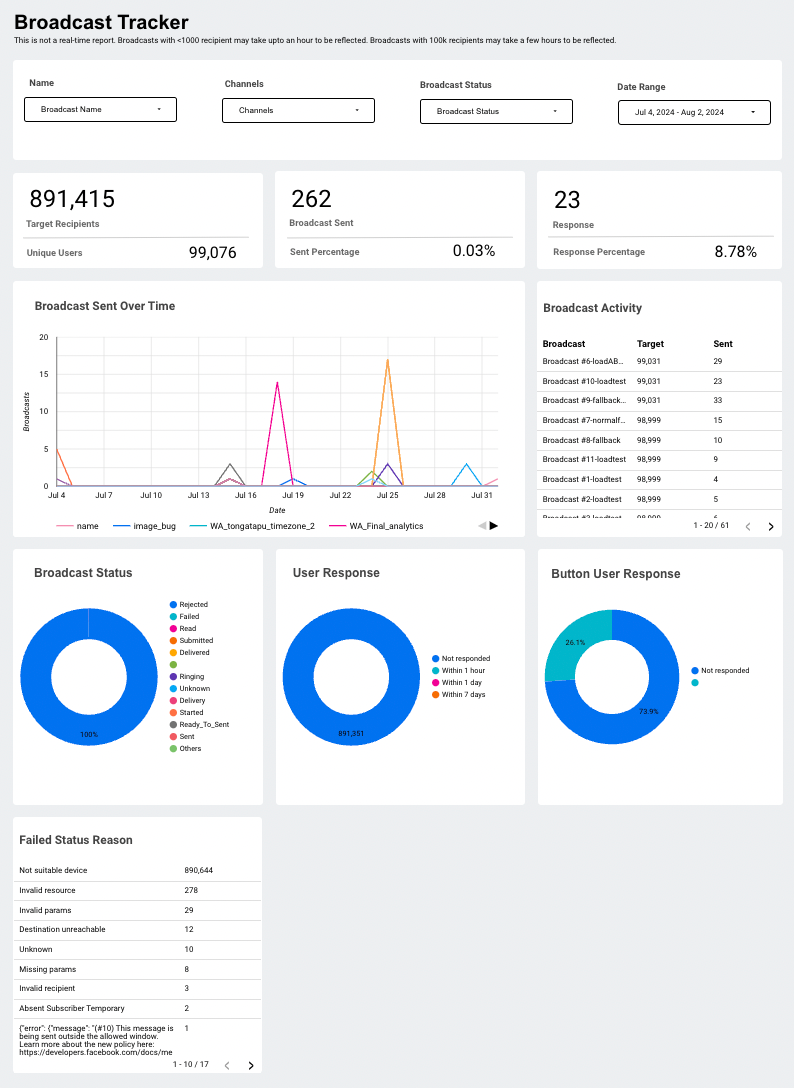

Broadcast Tracker

This page provides insights on the progress on which broadcast messages are sent and insights on the outcome of sending Broadcasts to your target audiences.



Filters Description
Broadcast Name Name of Broadcast
Channels Filter the order data based on channels like Facebook, Instagram, WhatsApp, RCS, etc.
Broadcast Status

*Statuses may vary between messaging channels*

Sent: Broadcast message has been sent out

Delivered: Message has been delivered to user

Not Delivered: Message has not been delivered to user

Read: User has read the message

Failed/Undeliverable: Failed when a broadcast channel is verifying details/parameters before sending

Rejected: Message sending was rejected by Channel

Ready to send/Tracker sending error: Message that is yet to be sent

Submitted: Vonage has sent a message to Channel

Unsubscribed: Broadcast message is not sent as User has unsubscribed

Unknown_MAPI: Due to unknown reason

Date Range Filter your data based on a date range when Broadcast message was sent

Metric Description
Target Recipients No of Users intended for Broadcast
Unique Users No. of unique users, Distinct count of Conversation id
Broadcast Sent No of Users to whom sending of Broadcast has been attempted and successfully sent in the first attempt
Sent Percentage Broadcast Sent/ Target Recipients
Response Users who have responded to Broadcast. This would include text and button inputs visible in the Conversation from the User after the Broadcast Message.
Response Percentage Response/ Broadcast Sent

Dimension Description
Broadcast Sent Over Time Those Broadcasts that are sent over a specific period
Broadcast Activity Breakdown of Recipients by Name of Broadcast+Count of broadcast tracker id
Broadcast Status

*Statuses may vary between messaging channels

Sent: Broadcast message has been sent out

Delivered: Message has been delivered to user

Not Delivered: Message has not been delivered to user

Read: User has read the message

Failed/Undeliverable: Failed when broadcast channel is verifying details/parameters before sending

Rejected: Message sending was rejected by Channel

Ready to send/Tracker sending error: Message that are yet to be sent

Submitted: Vonage has sent message to Channel

Unsubscribed: Broadcast message is not sent as User has unsubscribed

User Response

Not Responded: No user response after Broadcast

Within 1 hour: User responded within 1 hour of Broadcast

Within 1 day: User responded between 1 hour and 1 day of Broadcast

Within 7 Days: User responded between 1 day to 7 days of Broadcast

More than 7 days: User responded after more than 7 days of Broadcast

Button User Response User Response by clicking on the broadcast message button that has a postback response.
*Typed responses are considered to be ‘Not responded’
**Redirect buttons are considered to be ‘Not responded’
Failed  Status Reason Error messages for Messages with Invalid/Failed status. Display of failed reasons.

Refresh Time Indicates when the data is refreshed in broadcast tracker

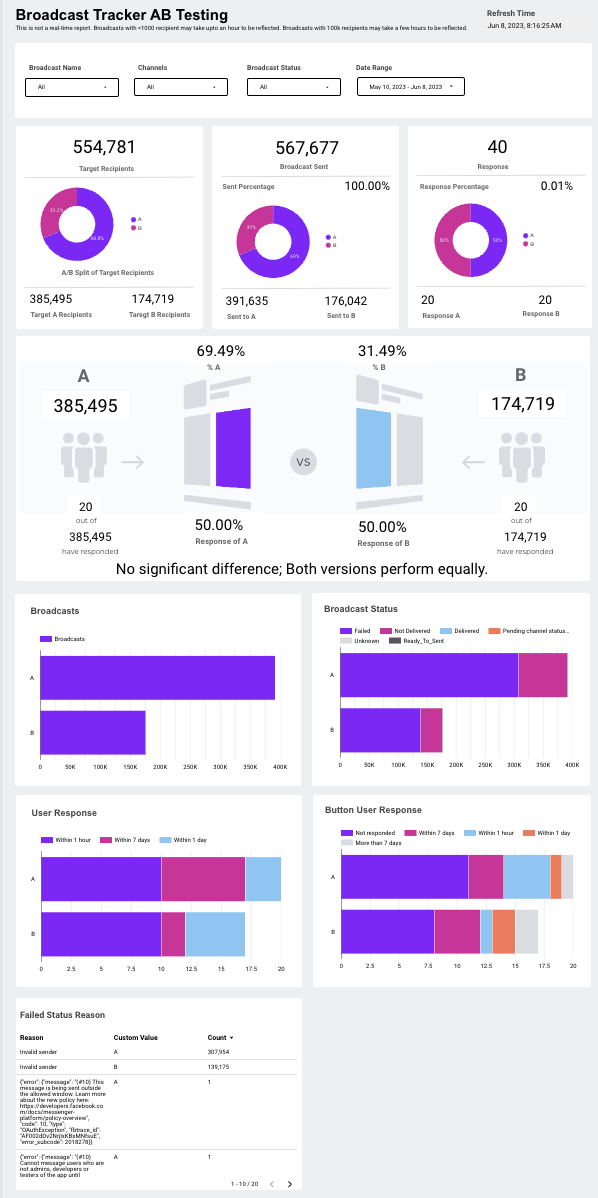

Broadcast Tracker AB Testing

This page provides insights on the progress on which Broadcasts where A/B Testing has been enabled.


Filters Description
Broadcast Name Name of Broadcast
Channels Filter the orders data based on channels like Facebook, Instagram, WhatsApp, RCS, etc.
Broadcast Status

*Statuses may vary between messaging channels*

Sent: Broadcast message has been sent out

Delivered: Message has been delivered to user

Not Delivered: Message has not been delivered to user

Read: User has read the message

Failed/Undeliverable: Failed when broadcast channel is verifying details/parameters before sending

Rejected: Message sending was rejected by Channel

Ready to send/Tracker sending error: Message that are yet to be sent

Submitted: Vonage has sent message to Channel

Unsubscribed: Broadcast message is not sent as User has unsubscribed

Unknown_MAPI: Due to unknown reason

Date Range Filter your data based on a date range when Broadcast message was sent

AB Comparison Image
  • Percentage of AB split(top)
  • Number of broadcasts sent to A/B(sides)
  • Response Percentage(bottom)
  • Conclusion statement based on the response percentage:
  • WHEN A percent is null AND B percent is null THEN 'There is no response for either'
  •  WHEN A percent*100 > B percent*100 THEN 'Version A is better than Version B'
  •  WHEN A percent*100 < B percent*100 THEN 'Version B is better than Version A'
  •   WHEN A percent*100 = B percent*100 THEN 'No significant difference; Both versions perform equally.'
  •  ELSE 'No Conclusion'

Metric Description
Target Recipients No of Users intended for Broadcast, Donut Chart indicates the split between A/B
Broadcast Sent No of Users who sending of Broadcast has been attempted and successfully sent in the first attempt, Donut Chart indicates the split between AB
Sent Percentage Broadcast Sent/ Target Recipients
Response Users who have responded to Broadcast. This would include text and button inputs visible in the Conversation from the User after the Broadcast Message.
The Donut Chart indicates the split between AB
Response Percentage Response/ Broadcast Sent

Dimension Description
Broadcasts Bar chart indicating AB split of the broadcast, count of AB
Broadcast Status

Bar chart indicating AB split.
*Statuses may vary between messaging channels

Sent: The broadcast message has been sent out

Delivered: Message has been delivered to the user

Not Delivered: Message has not been delivered to the user

Read: User has read the message

Failed/Undeliverable: Failed when a broadcast channel is verifying details/parameters before sending

Rejected: Message sending was rejected by Channel

Ready to send/Tracker sending error: Message that are yet to be sent

Submitted: Vonage has sent message to Channel

Unsubscribed: Broadcast message is not sent as User has unsubscribed

User Response

Bar chart indicating AB split.
Not Responded: No user response after Broadcast

Within 1 hour: User responded within 1 hour of Broadcast

Within 1 day: User responded between 1 hour and 1 day of Broadcast

Within 7 Days: User responded between 1 day to 7 days of Broadcast

More than 7 days: User responded after more than 7 days of Broadcast

Button User Response Bar chart indicating AB split.
User Response by clicking on the broadcast message button that has a postback response.
*Typed responses are considered to be ‘Not responded’
**Redirect buttons are considered to be ‘Not responded’
Failed  Status Reason Error messages for Messages with Invalid/Failed status. Display of failed reasons.

Refresh Time Indicates when the data is refreshed in the broadcast tracker

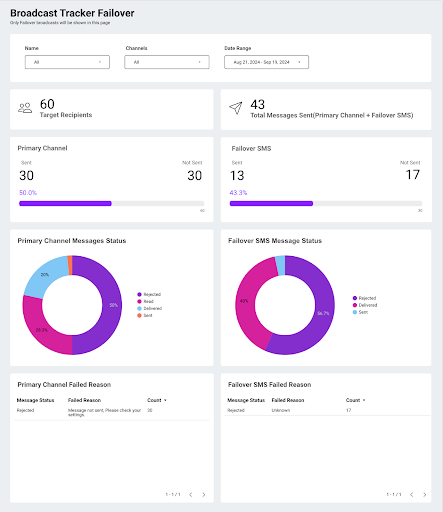

Broadcast (SMS Failover)

This page provides insights on the Broadcasts where failover has been enabled..






Filters Description
Name Name of Broadcast
Channels Filter the Broadcast data based on channels like WhatsApp, Google RCS etc.
Date Range Filter your data based on a date range when Broadcast message was sent



Top scorecards Description
Target Recipients This gives the unique count of broadcasts that are sent in the first attempt
Total Messages Sent (Primary Channel + Failover SMS) Distinct Count of Total Broadcasts sent under the condition that fail reason is null for primary and secondary channel, thereby indicating that the broadcasts that were sent, delivered, read, etc(all positive statuses) successfully



Primary Channel Scorecards Description
Primary Channel Distinct Count of broadcasts where the broadcasts are attempted using the primary channels
Sent Count of broadcasts where the broadcasts are are sent using the primary channels
Not Sent Count of broadcasts where the broadcasts aren’t sent in the first attempt using the primary channels



Secondary Channel Scorecards Description
Failover SMS Distinct Count of broadcasts where the broadcasts are attempted using the failover SMS channel
Sent Count of broadcasts where the broadcasts are are sent using the failover SMS channel
Not Sent Count of broadcasts where the broadcasts aren’t sent in the second attempt using the failover SMS channel
Dimension Description
Primary Channel Message Status Statuses of Primary Channel
Failover SMS Message Status Statuses of Secondary Channel
Primary Channel Failed Reason Failed Reasons of Primary Channel
Failover SMS Failed Reason Failed Reasons of Secondary Channel
